Invoice Settlement object model

Zuora

Invoice Settlement object model

This article describes the key objects that are available with the Invoice Settlement feature and summarizes the relationships between the objects.

For information about objects that are not part of the Invoice Settlement feature, see Zuora Business Object Model.

Object relationships

The following diagrams illustrate the object model of the Invoice Settlement feature.

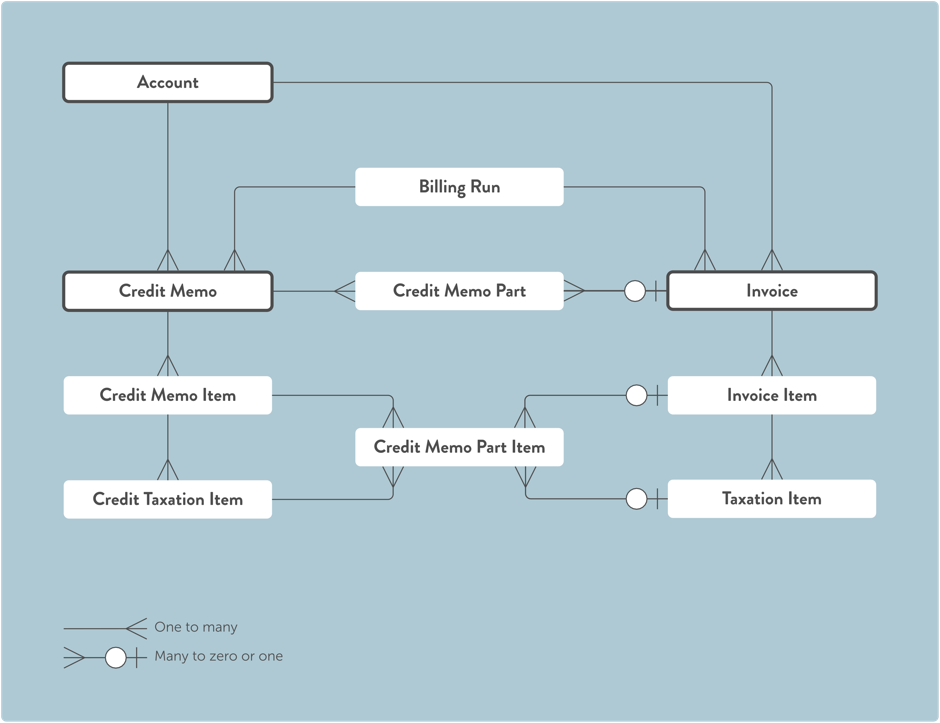

Credit memos applied to invoices


Credit memos applied to debit memos


Payments applied to invoices


Payments applied to debit memos

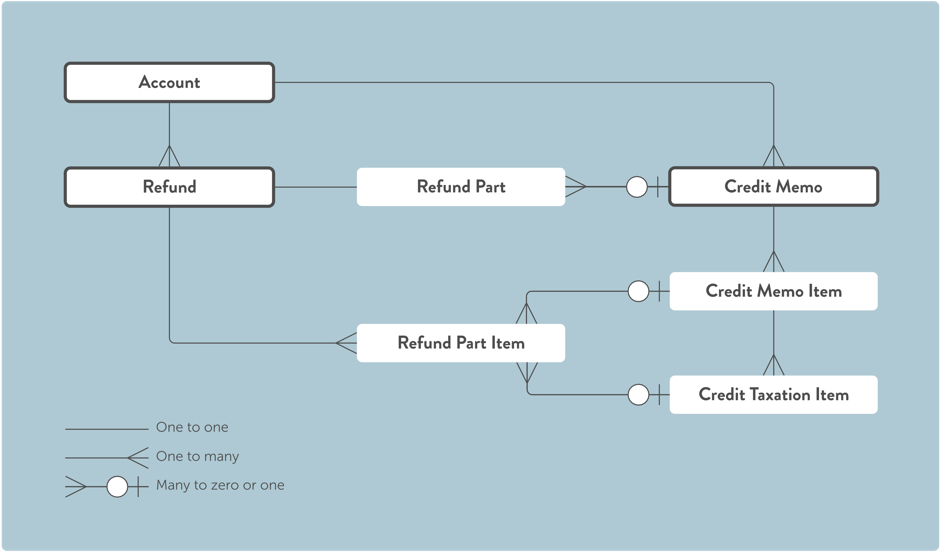

Refunds applied to credit memos


Refunds applied to payments


Object descriptions

Object Description

Account

A customer account.

Corresponding data source: Account

Billing Run

A process that generates invoices and credit memos for customers.

Corresponding data source: Billing Run

Credit Memo

A credit memo that is owned by a customer.

Corresponding data source: Credit Memo

Credit Memo Item

A line item on a credit memo.

Corresponding data source: Credit Memo Item

Credit Memo Part

The portion of a credit memo that is applied to a particular invoice, is applied to a particular debit memo, or is unapplied.

Corresponding data source: Credit Memo Part

Note: After a credit memo is fully refunded, it doesn’t contain any credit memo part.

Credit Memo Part Item

The portion of a credit memo that is applied to a particular item on an invoice or debit memo.

Corresponding data source: Credit Memo Part Item

Credit Taxation Item

Taxation information about a credit memo item.

Corresponding data source: Credit Taxation Item

Debit Memo

A debit memo that is owned by a customer.

Corresponding data source: Debit Memo

Debit Memo Item

A line item on a debit memo.

Corresponding data source: Debit Memo Item

Debit Taxation Item

Taxation information about a debit memo item.

Corresponding data source: Debit Taxation Item

Invoice

An invoice that is owned by a customer.

Corresponding data source: Invoice

Invoice Item

A line item on an invoice.

Corresponding data source: Invoice Item

Payment

A payment by a customer.

Corresponding data source: Payment

Payment Method

A payment method that is owned by a customer.

Corresponding data source: Payment Method

Payment Method Snapshot

A copy of the payment method that was used in a particular transaction. If the payment method is deleted, the payment method snapshot continues to retain the data used in the transaction.

Corresponding data source: Payment Method Snapshot (only available in Zuora Reporting)

Payment Part

The portion of a payment that is applied to a particular invoice, is applied to a particular debit memo, or is unapplied.

Corresponding data source: Payment Part

Note: After a payment is fully refunded, it doesn’t contain any payment part.

Payment Part Item

The portion of a payment that is applied to a particular item on an invoice or debit memo.

Corresponding data source: Payment Part Item

Payment Run

A process that collects payment from customers.

Corresponding data source: Payment Run

Refund

A refund to a customer.

Corresponding data source: Refund

Refund Part

The portion of a refund that is applied to a particular payment or credit memo.

Corresponding data source: Refund Part

Refund Part Item

The portion of a refund that is applied to a particular item on a credit memo.

Corresponding data source: Refund Part Item

Taxation Item

Taxation information about an invoice item.

Corresponding data source: Taxation Item



  • When the amount in a record of the following objects is 0, the record will be hard deleted:
    • RefundPart
    • CreditMemoPart
    • RefundPartItem
    • CreditMemoPartItem
  • When the amount in a record of the following objects is 0, the record will be soft deleted: (enables you to retain data within the Zuora system)
    • PaymentPart
    • PaymentPartItem
